1200mm 1500mm 28W 38W 4000K Slim Batten Light
Features
Slim LED batten is a direct replacement for traditional single and twin fluorescents. Mounted on a traditional batten body the LEDs are housed in a slim opal diffuser. Suitable for surface or suspended installation, the fittings are commonly used in schools, offices, corridors and public areas. Available in a choice of three lengths 2ft, 4ft and 5ft, slim design batten light, which is widely apply to the general lighting and to indoor car parks, industries, shops, offices, schools etc.
Technical Specification
|
Model No. |
Size (cm) |
Power (W) |
Input Voltage (V) |
CCT (K) |
Lumen (lm) |
CRI (Ra) |
PF |
IP Rate |
Warranty |
|
BA010-06C018 |
60 |
18 |
AC200-240 |
3000-6500 |
1680 |
>80 |
>0.9 |
IP20 |
5 Years |
|
BA010-12C028 |
120 |
28 |
AC200-240 |
3000-6500 |
3360 |
>80 |
>0.9 |
IP20 |
5 Years |
|
BA010-12C038 |
120 |
38 |
AC200-240 |
3000-6500 |
4560 |
>80 |
>0.9 |
IP20 |
5 Years |
|
BA010-15C035 |
150 |
38 |
AC200-240 |
3000-6500 |
4560 |
>80 |
>0.9 |
IP20 |
5 Years |
|
BA010-15C055 |
150 |
55 |
AC200-240 |
3000-6500 |
6600 |
>80 |
>0.9 |
IP20 |
5 Years |
Dimension
|
Model No. |
A(L=mm) |
B(W=mm) |
C(H=mm) |
|
BA010-06C018 |
600 |
57 |
63 |
|
BA010-12C028/38 |
1200 |
57 |
63 |
|
BA010-15C038/55 |
1500 |
57 |
63 |

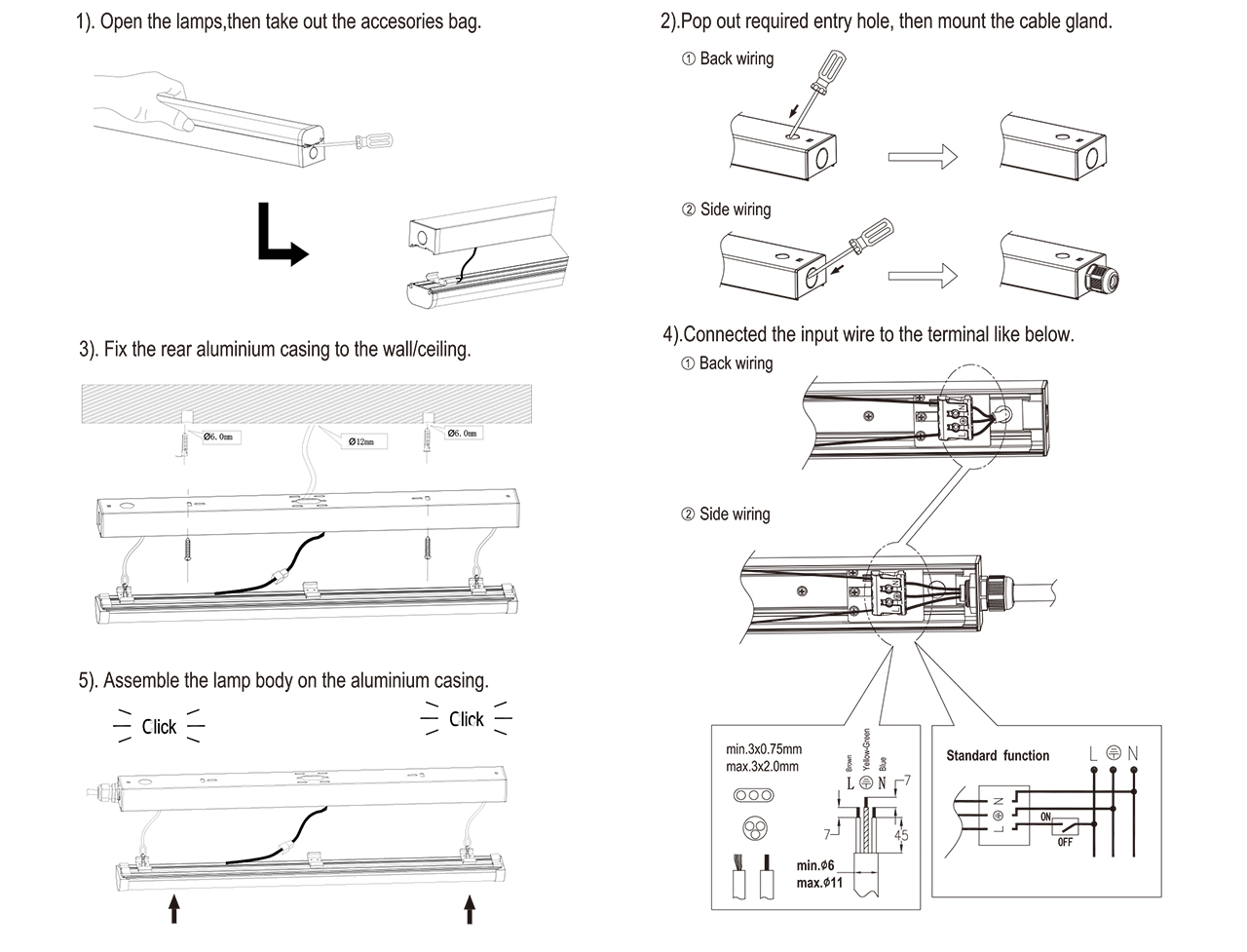

Installation and Wiring
Package
| Size | Inner Box | Master Carton | Q`ty/Carton | N.W./Carton | G.W./Carton |
| 600mm | 600 x 70 x 63mm | 615x 365 x 141mm | 10PCS | 5KG | 6.4KG |
| 1200mm | 1205 x 71 x 62mm | 1220 x 370 x 140mm | 10PCS | 8.8KG | 11.3KG |
| 1500mm | 1505 x 71 x 62mm | 1520 x 370 x 140mm | 10PCS | 10.8KG | 14.5KG |
Application
1.Industrial lighting: factory, warehouse, workshop, etc
2.Commercial lighting: supper market, family mart, shopping mall, parking lots, etc.
3.Public lighting: school, hospital, corridor, metro station, train station, airport terminal, etc.
We support custom-made parameters, specifications and package of all the products.
