4 inch deep 2×2 LED Panel Surface Mounting Frame Box for Ceiling Panel 2×2

Product Features

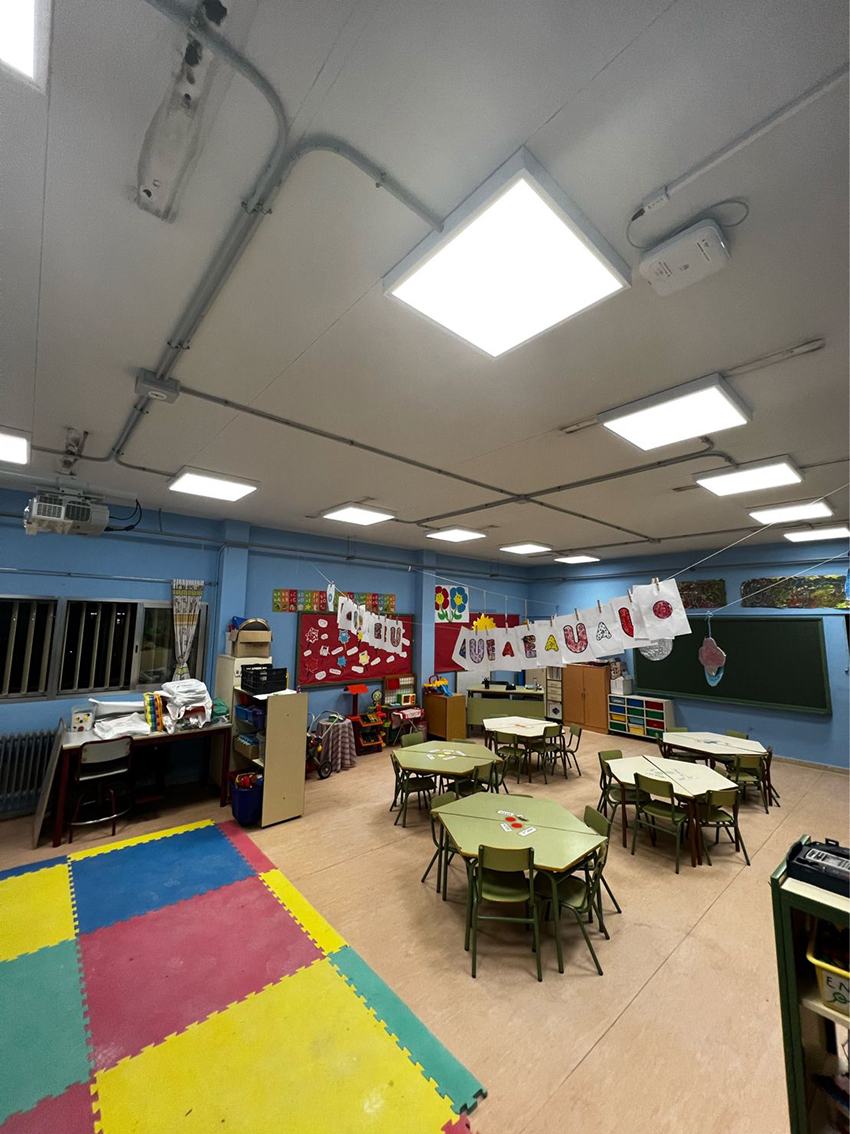

Screwless and tool free fast assemble type, save labor cost and time cost. The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation. This surface mounting kit is perfect to install LED backlight panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

Compatible with all LED panel sizes
Easy and safe installation
LED driver can be placed inside
Ideal for plasterboard/concrete ceilings

Color: White

Product height: 70mm

Send email to us Download as PDF

Product Detail

Product Tags

It adheres to your tenet “Honest, industrious, enterprising, innovative” to produce new solutions constantly. It regards consumers, success as its own success. Let us develop prosperous future hand in hand for 4 inch deep 2×2 LED Panel Surface Mounting Frame Box for Ceiling Panel 2×2, We glance ahead to determine a long-term organization marriage together with your esteem co-operation.
It adheres to your tenet “Honest, industrious, enterprising, innovative” to produce new solutions constantly. It regards consumers, success as its own success. Let us develop prosperous future hand in hand for 4 inch deep 2×2 surface mount, surface mount kit, We adhere to client 1st, top quality 1st, continuous improvement, mutual advantage and win-win principles. When cooperation together with the customer, we deliver shoppers with the highest high-quality of service. Established good business relations using the Zimbabwe buyer inside the business, we’ve got established own brand and reputation. At the identical time, wholeheartedly welcome new and old prospects to our company to go to and negotiate small business.
Features

70mm deep surface mounting kit design for LED backlight panel and US standard 2×4, 2×2, 1×4 LED panel and troffers. Individual box packaging and custom-made packaging is acceptable, which can be sold directly on wholesale or retail shelves.

1. Compatible with backlight panel and troffer lights

2. Ideal for plasterboard/concrete ceilings

3. LED driver can be placed inside

4. Easy and safe installation

Dimension

LED Panel Size(mm)	A(mm)	B(mm)	Thickness(mm)
595×595	599	599	70
620×620	624	624	70
295×1195	299	1199	70
595×1195	599	1199	70
295×295	299	299	70
2×2	607	607	70
2×4	607	1216	70
1×4	305	1216	70

Installation

Package

Size	Qty/Carton	Carton Size	N.W./Carton	G.W./Carton
595x595mm	15PCS	635x290x245mm	15KG	16KG
620x620mm	15PCS	660x290x245mm	15.6KG	16.6KG
295x1195mm	12PCS	1235x240x240mm	14.8KG	15.8KG
595x1195mm	12PCS	1235x240x240mm	17.8KG	18.8KG
2×4	12PCS	1250x240x240mm	18.1KG	19.1KG
2×2	15PCS	645x290x245mm	15.3KG	16.3KG
1×4	12PCS	1250x240x240mm	15KG	16KG
