AL+PC T8 LED Tube Light G13 Rotatable End Cap
Technical Specification
|
Model No. |
Size (cm) |
Power (W) |
Input Voltage (V) |
CCT (K) |
Lumen (lm) |
CRI (Ra) |
PF |
IP Rate |
Certificate |
|
TU005-06C009 |
60 |
9 |
AC200-240 |
3000-6500 |
990 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU005-12C018 |
120 |
18 |
AC200-240 |
3000-6500 |
1980 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU005-15C022 |
150 |
22 |
AC200-240 |
3000-6500 |
2420 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU005-06C009 |
60 |
9 |
AC200-240 |
3000-6500 |
1080 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU005-12C018 |
120 |
18 |
AC200-240 |
3000-6500 |
2160 |
>80 |
>0.9 |
IP20 |
EMC,LVD |
|
TU005-15C022 |
150 |
22 |
AC200-240 |
3000-6500 |
2640 |
>80 |
>0.9 |
IP20 |
EMC,LVD |

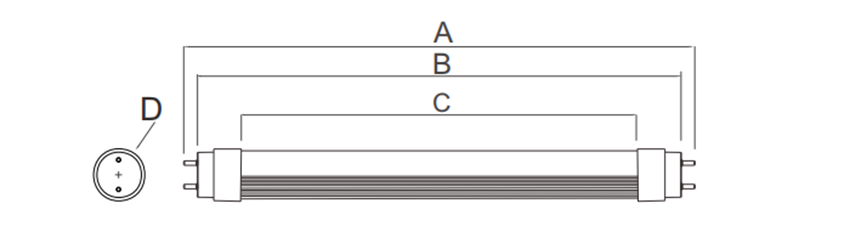

Dimension
|
Model No. |
A(mm) |
B(mm) |
D(mm) |
|
TU005-06C009 |
603 |
588 |
27 |
|
TU005-12C018 |
1213 |
1198 |
27 |
|
TU005-15C022 |
1513 |
1498 |
27 |

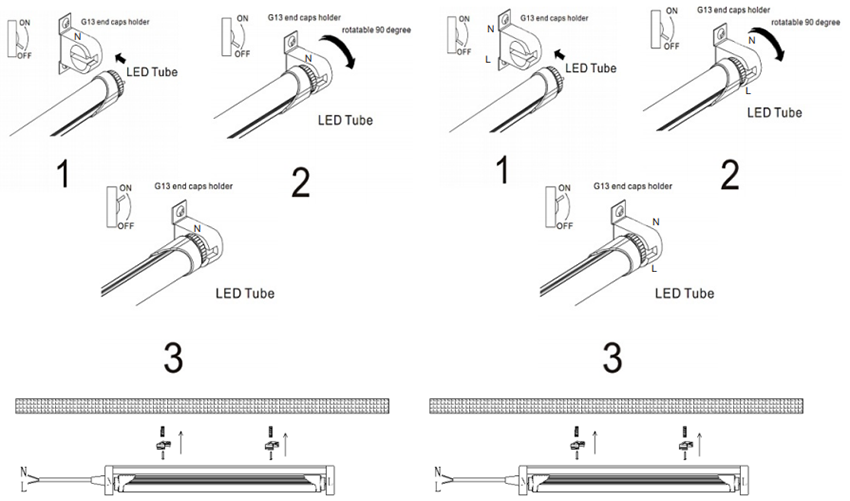

Installation
Wiring

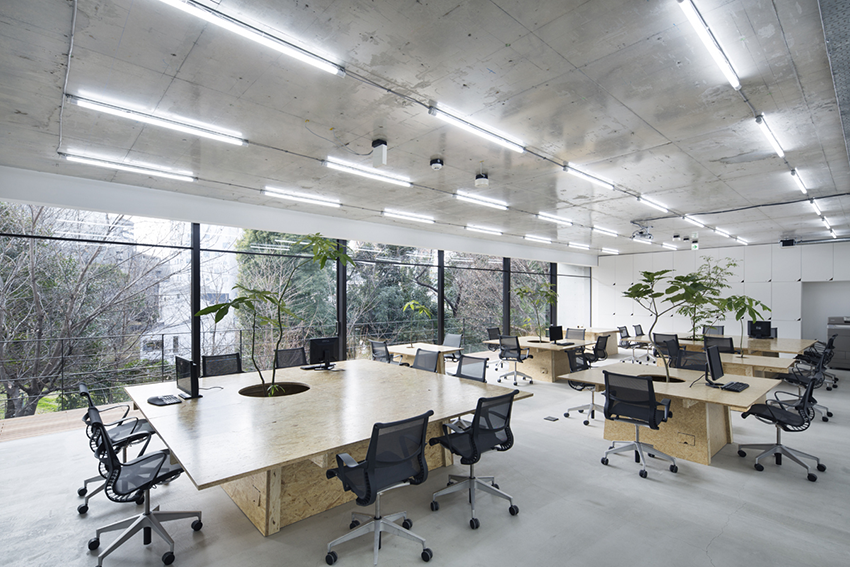

Application
- Supermark, shopping mall, retail;

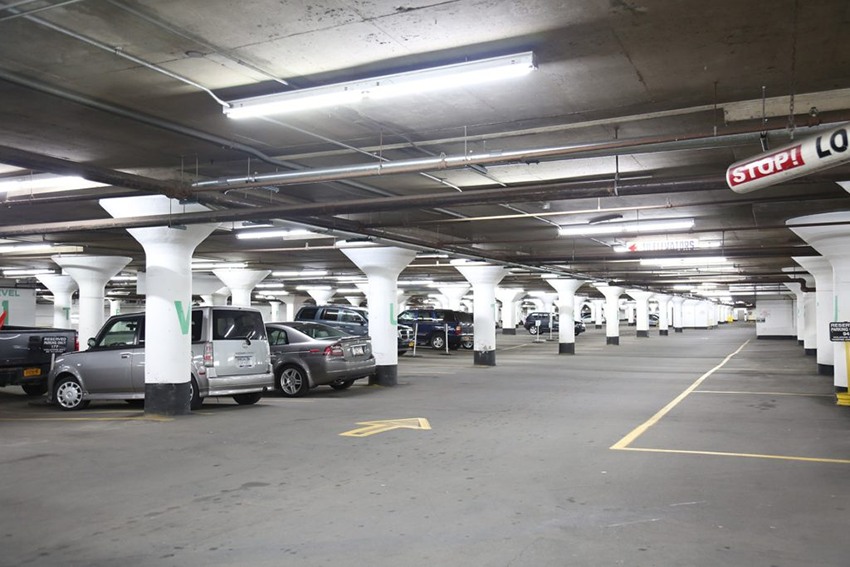

- Factory, warehouse, parking lot;
- School, corridor, public building;
We support custom-made parameters, specifications and package of all the products.
