China New ProductMeanwell High Bay - LED Strip Fixture X19 – Eastrong
China New ProductMeanwell High Bay - LED Strip Fixture X19 – Eastrong Detail:
Technical Specification
|
Model No. |
Size |
Power (W) |
Input Voltage (V) |
CCT (K) |
Lumen (lm) |
CRI (Ra) |
PF |
IP Rate |
|
12C036-X19 |
4FT |
36 |
AC100-277 |
3000-6500 |
4320-4680 |
>80 |
>0.9 |
IP20 |
|
15C045-X19 |
5FT |
45 |
AC100-277 |
3000-6500 |
5400-5850 |
>80 |
>0.9 |
IP20 |
|
24C072-X19 |
8FT |
72 |
AC100-277 |
3000-6500 |
8640-9360 |
>80 |
>0.9 |
IP20 |

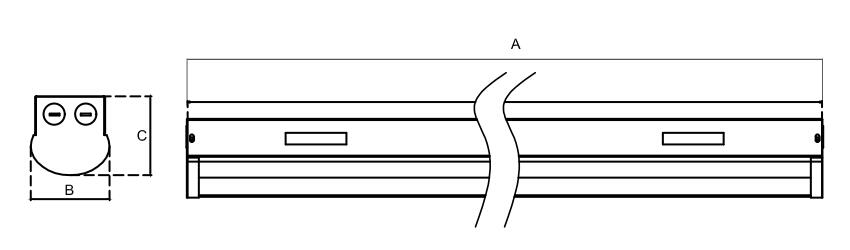

Dimension
|
Model No. |
A(L=mm) |
B(W=mm) |
C(H=mm) |
|
12C036-X19 |
1220 |
80 |
81 |
|
15C045-X19 |
1530 |
80 |
81 |
|
24C072-X19 |
2440 |
80 |
81 |

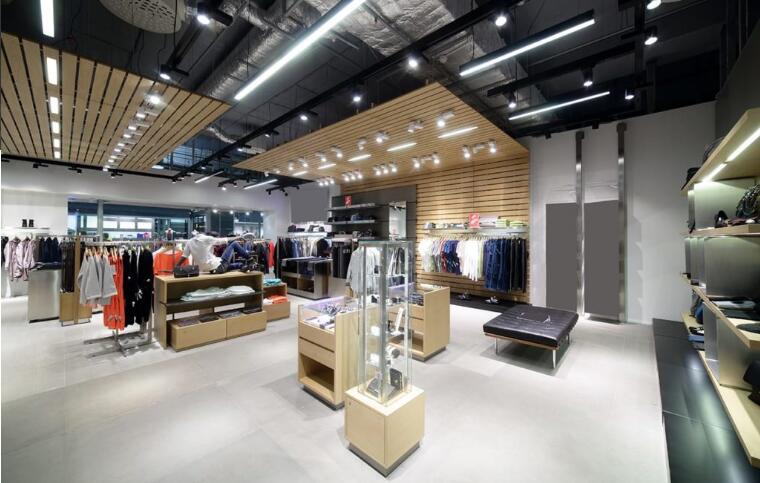

Application
Supermarket, shopping mall, retail;
Factory, warehouse, parking lot;
School, corridor, public building;
Product detail pictures:
