High Quality China IP65 Triproof Lights 600mm 1200mm 1500mm LED Linear Triproof Lights

Product Features

  1. IP65, IK09 high protect level;
  2. Replacement for traditional fluorescent lamp tri-proof fixture;
  3. High lumen efficiecny, 125lm/W;
  4. Emergency, dimmable, DALI and microwave motion sensor options;
  5. Surface mounted and suspending installation;
  6. LED tri-proof light is suitabale for parking lots, corridors, underpass, call wash shops, station etc.


Product Detail

Product Tags

Our corporation promises all end users in the first-class solutions as well as most satisfying post-sale services. We warmly welcome our regular and new shoppers to join us for High Quality China IP65 Triproof Lights 600mm 1200mm 1500mm LED Linear Triproof Lights, We sincerely welcome domestic and foreign retailers who calls, letters inquiring, or to crops to barter, we’ll supply you high-quality merchandise as well as the most enthusiastic company,We look forward in your go to and your cooperation.
Our corporation promises all end users in the first-class solutions as well as most satisfying post-sale services. We warmly welcome our regular and new shoppers to join us for China LED Triproof Light, LED Waterproof Light, We aim to build a famous brand which can influence a certain group of people and light up the whole world. We want our staff to realize self-reliance, then achieve financial freedom, lastly obtain time and spiritual freedom. We do not focus on how much fortune we can make, instead we aim to obtain high reputation and be recognized for our products. As a result, our happiness comes from our clients satisfaction rather than how much money we earn. Ours team will do best for yourself always.

Features

This energy-efficient LED tri-proof light does not require regular lamp replacements and lasts up to 50,000 hours. LED Tri Poof light are the heavy-duty, super-bright alternative to traditional tube and strip light fixtures. They are dust tight as well as water and impact resistant for use in harsh environments. Suitable for damp locations. Mount on a wall with included hardware or suspend from ceilings with a suspension kit. It’s perfect for commercial lighting, warehouse lighting, parking garage lighting, supermarket lighting and more.

1. Energy-saving and maintenance-free LED light source

2. Durable aluminum housing with translucent frosted lens cover

3. Water, dust, and corrosion-resistant for long, lasting use

4. Surface mount installation with including mounting clips

5. Ideal for use in garages, warehouses, factories, or utility rooms

Technical Specification

Model No.

Size

(cm)

Power

(W)

Input Voltage

(V)

CCT

(K)

Lumen

(lm)

CRI

(Ra)

PF

IP Rate

Certificate

TP001-06C020

60

20

AC220-240

3000-6500

2400

>80

>0.9

IP65

EMC,LVD

TP001-12C040

120

40

AC220-240

3000-6500

4800

>80

>0.9

IP65

EMC,LVD

TP001-15C060

150

60

AC220-240

3000-6500

7200

>80

>0.9

IP65

EMC,LVD

Dimension

Model No.

A(L=mm)

C(W=mm)

D(H=mm)

TP001-06C020

600

80

70

TP001-12C040

1200

80

70

TP001-15C060

1500

80

70

Installation Instruction

Package

Size

Rated Power

Inner Box

Master Carton

Qty/Carton

N.W./Carton

G.W./Carton

600mm

20W

650x90x80mm

665x285x255mm

9PCS

9.9KG

11.7KG

1200mm

40W

1250x90x80mm

1265x285x255mm

9PCS

16.2KG

18.5KG

1500mm

60W

1550x90x80mm

1565x285x175mm

6PCS

12.4KG

16.6KG

Application

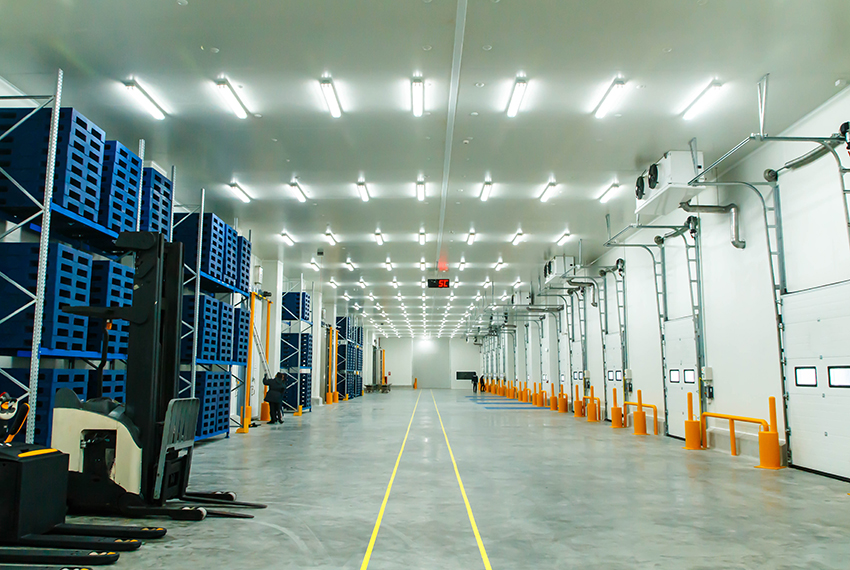

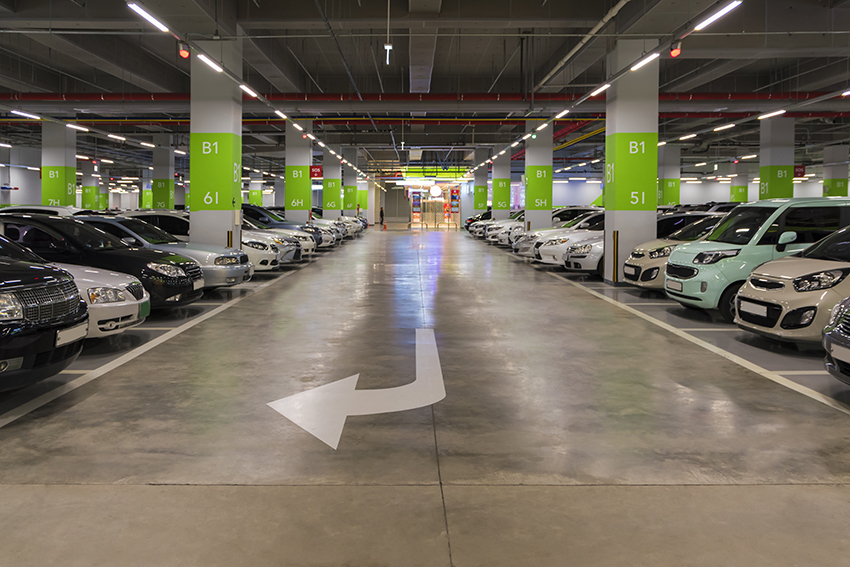

  1. Workshop, Factory, warehouse, parking lot;
  2. Garage, corridor, tunnel;
  3. Railway station, airport, MTR station;

45

38

We support custom-made parameters, specifications and package of all the products.

Customers are warmly welcome to visit our factory!
