Assembled Recessed Mount Frame Resessed Ceiling Mount Kits
Features
Recessed mounting kits make it easy to install panels in an environment without a suspended grid system. Mounting kits make it easy for any area to take advantage of upgrading to LED panels.
This recessed kit has a white finish, allowing for the subtle incorporation of LED panels into a plain ceiling. By being slotted into a hole in the plasterboard, this kit will allow the panel to sit flush.
1. Assembled recessed mounting kit saving time and labor cost
2. Compatible with all size of LED panels
3. Widely apply to offices, schools, hospitals etc

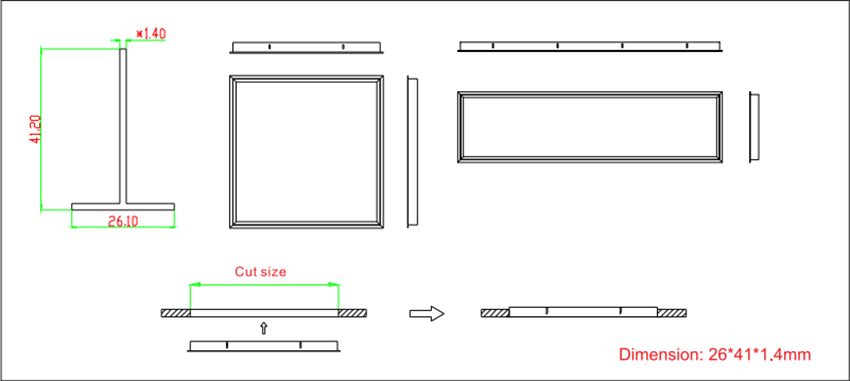

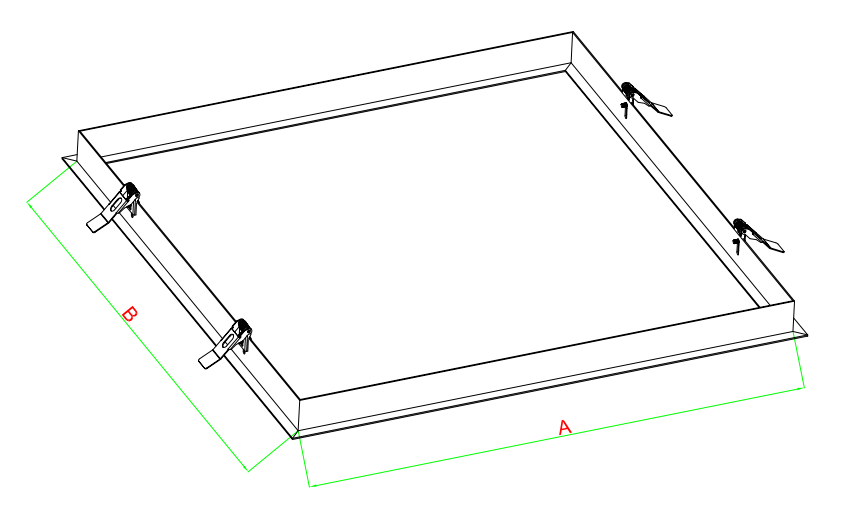

Dimension
LED Panel Size(mm) |
A(mm) |
B(mm) |
Height(mm) |
595x595 |
630 |
630 |
41 |
620x620 |
655 |
655 |
41 |
295x1195 |
330 |
1230 |
41 |
595x1195 |
630 |
1230 |
41 |
295x295 |
330 |
330 |
41 |
2x2 |
638 |
638 |
41 |
2x4 |
638 |
1247 |
41 |
1x4 |
336 |
1247 |
41 |

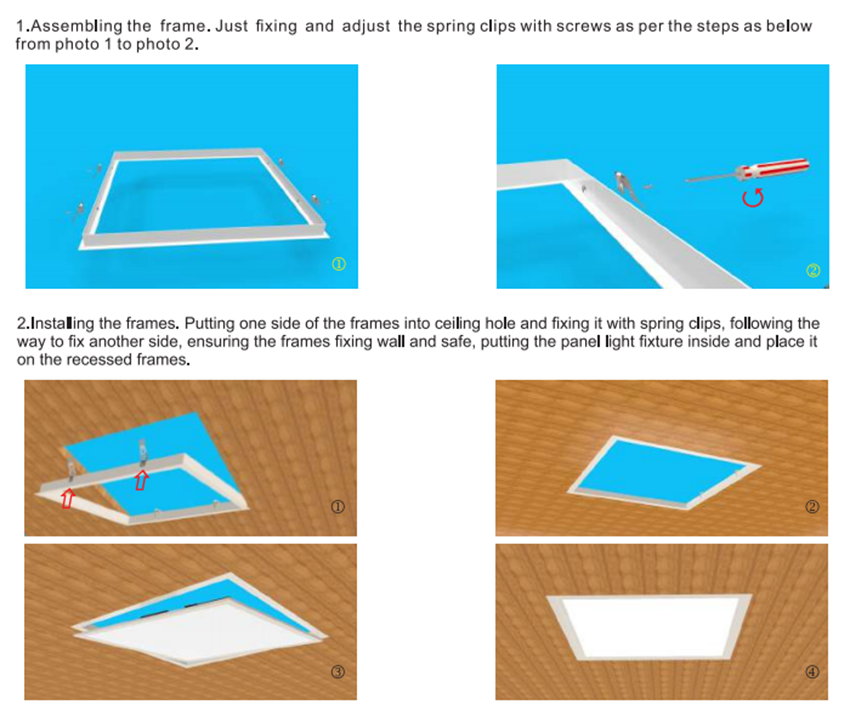

Installation

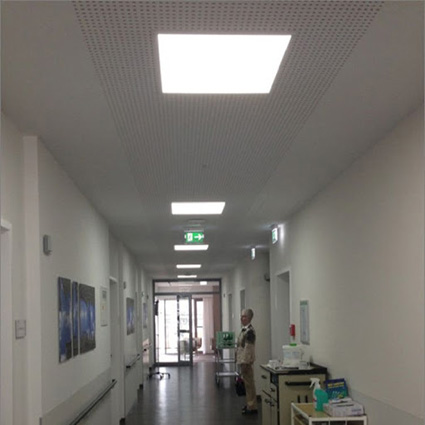

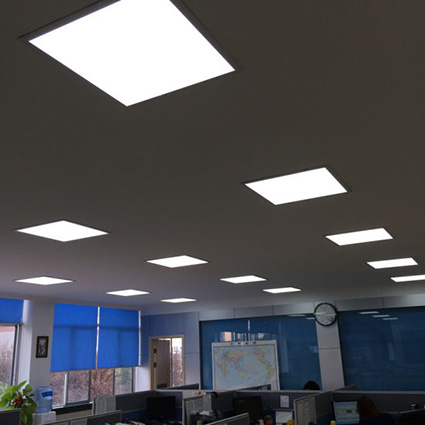

Application
- Reference room, building;
- School, office, hotel;
We support custom-made parameters, specifications and package of all the products.
Customers are warmly welcome to visit our factory!
