Integrated T8 LED Tube Light Directly Mounting No Lamp Holder

Product Features

  1. Integrated half PC with half aluminum profile design;
  2. Aluminum base is better for thermal conductivity;
  3. Seamless linkable in-line connection;
  4. Lighting without light spot and dark space;
  5. Enjoy Hassle-free, safe and easy Installation.


Product Detail

Product Tags

Technical Specification

Model No.

Size

(cm)

Power

(W)

Input Voltage

(V)

CCT

(K)

Lumen

(lm)

CRI

(Ra)

PF

IP Rate

Certificate

TU004-06C010

60

10

AC200-240

3000-6500

1200

>80

>0.9

IP20

EMC,LVD

TU004-12C018

120

18

AC200-240

3000-6500

2160

>80

>0.9

IP20

EMC,LVD

TU004-12C027

120

27

AC200-240

3000-6500

3240

>80

>0.9

IP20

EMC,LVD

TU004-15C028

150

28

AC200-240

3000-6500

3360

>80

>0.9

IP20

EMC,LVD

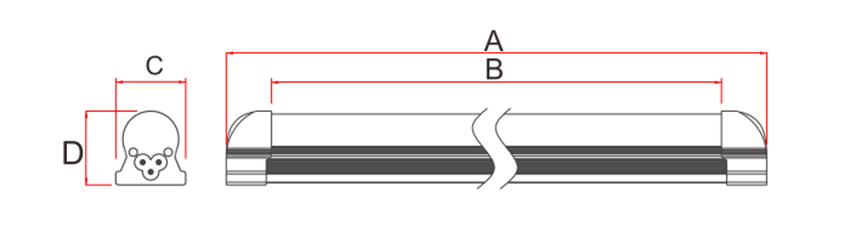

Dimension

01

Model No.

A(mm)

C(mm)

D(mm)

TU004-06C010

600

33

35

TU004-12C018

1200

33

35

TU004-15C028

1500

33

35

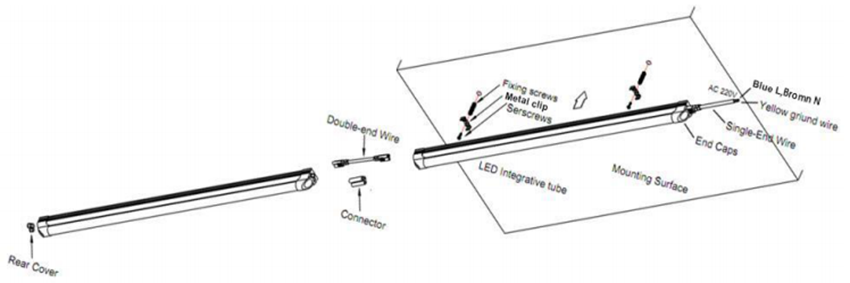

Installation

02

Wiring

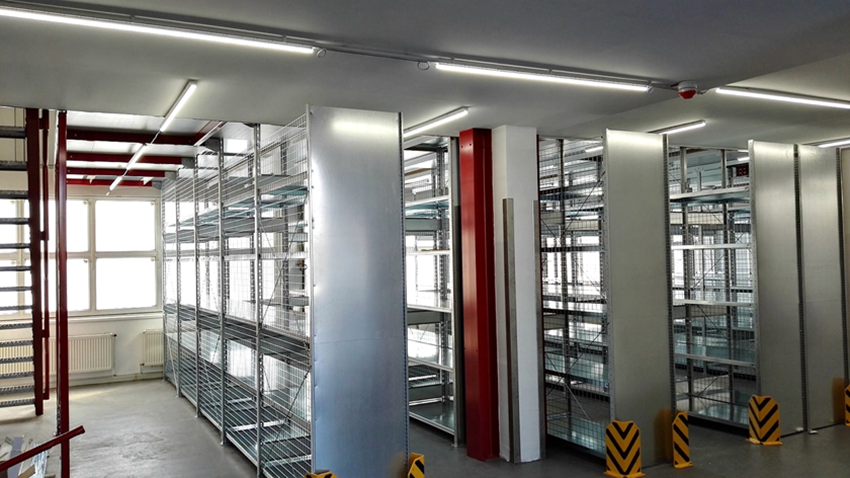

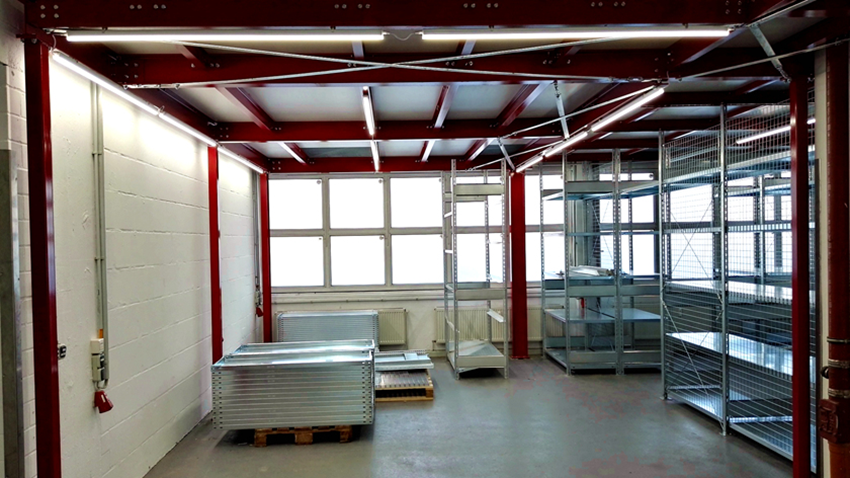

Application

  1. Supermark, Shopping mall, family mart;
  2. Workshop, factory, warehouse, parking lot;
  3. School, office, corridor;



03

04

We support custom-made parameters, specifications and package of all the products.

Customers are warmly welcome to visit our factory!
