1200mm Slimline Integrated LED Batten T8 Fitttings

Fitur produk

Panggantos becik kanggo fitting batten tunggal lan kembar neon;

diffuser Opal kanggo distribusi cahya sing rata;

Output lumen dhuwur 120lm / W;

60cm, 120cm lan 150cm kanthi daya 14W-38W;

umur 30.000 jam;

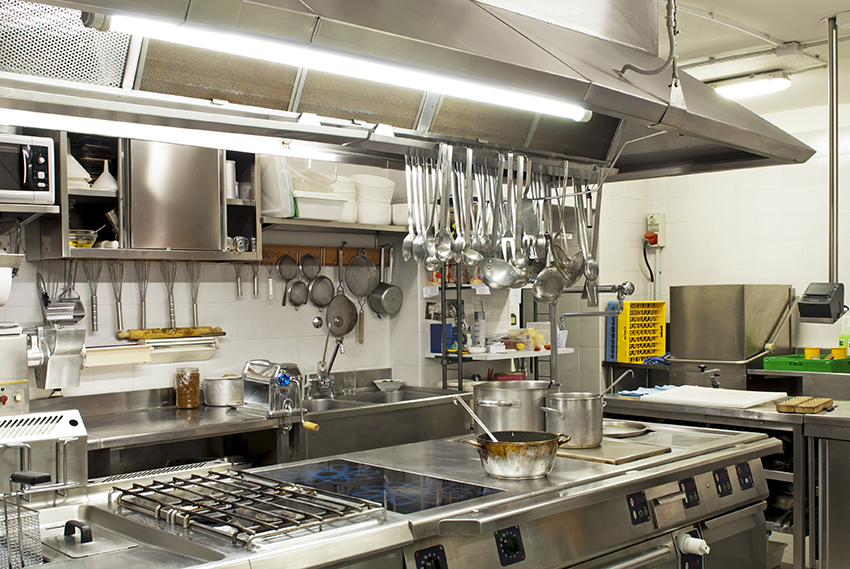

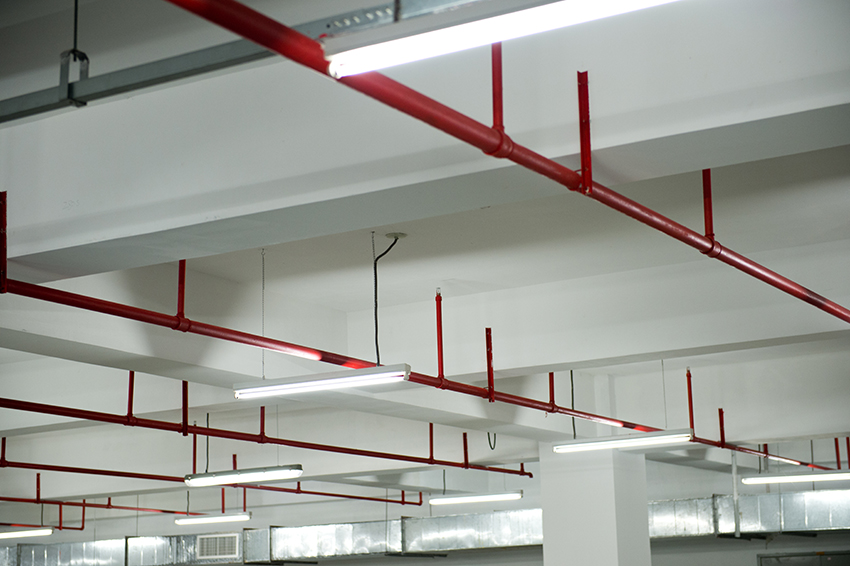

Fitting batten LED digunakake kanggo lampu umum lan kanggo taman mobil njero ruangan, industri, toko, kantor, sekolah, lsp.

Kirimi email kanggo kita Ngundhuh minangka PDF

Detail Produk

Tag produk

Fitur

Pengganti langsung kanggo fluoresensi tunggal tradisional.Dipasang ing awak batten tradisional, LED dipasang ing diffuser opal sing ramping.fitting batten LED cocok kanggo lumahing dipasang utawa dilereni soko tugas, fittings umume digunakake ing sekolah, kantor, koridor lan wilayah umum.Kasedhiya ing pilihan telung dawa 2ft, 4ft & 5ft.

1. Profil extrusion saka 6063-T5 aluminium alloy awak
2. perawatan lumahing karo dhuwur gloss putih wêdakakêna ditutupi
3. Seragam cahya Optimal desain optik kanggo mesthekake ora spottiness
4. CRI 80, SDCM<6, 120lm/w, kualitas cahya unggul digabungake karo hemat energi apik
5. Aplikasi: Kantor, ruang rapat, omah, ruang pameran, pasar super, lsp

Spesifikasi Teknis

Model No.	Ukuran (cm)	daya (W)	Tegangan Input (V)	CCT (K)	Lumen (lm)	CRI (Ra)	PF	IP Rate	Sertifikat
BA002-06C014	60	14	AC220-240	3000-6500	1680	> 80	> 0.9	IP20	EMC, LVD
BA002-12C028	120	28	AC220-240	3000-6500	3360	> 80	> 0.9	IP20	EMC, LVD
BA002-15C038	150	38	AC220-240	3000-6500	4560	> 80	> 0.9	IP20	EMC, LVD

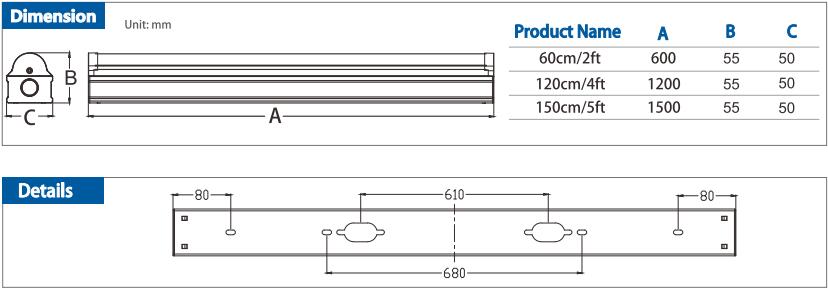

ukuran

Paket

Ukuran	Daya Rated	Kothak njero	Karton Utama	Q`ty / Karton	Unit NW	GW / Karton
600 mm	14W	620x63x67mm	635x335x155mm	10 PCS	0,59KG	6,9kg
1200 mm	28W	1220x63x67mm	1235x335x155mm	10 PCS	0.85KG	9,5kg
1500 mm	38W	1520x63x67mm	1535x335x155mm	10 PCS	0,99KG	11.9KG
