LED Vapor Light
Features
This is our new fashionable and personalized design LED vapor light.
Wide beam angle: meet all lighting demands.
Hi-pot: built-in aluminum heatsink, with V0 fire-rated PC housing, good cooling and improve safety factor, hi-pot > 5000V.
IP65: integral design and fully compact structure.
Full range of options including emergency, sensor, dimmable and flexible combination functions available.
600mm, 1200mm and 1500mm size with wide power wattage 25W, 36W, 45W and 60W, 120 lumen per watt and 140 lumen per watt luminious efficacy. Maximum output lumen up to 8400 lumen.
LED vapor light is suitable for commercial and industrial use like factory, warehouse, school, subway, corridor and more public areas.
Technical Specifications
|
Model No. |
Size (cm) |
Power (W) |
Input Voltage (V) |
CCT (K) |
Lumen (lm) |
CRI (Ra) |
PF |
IP Rate |
Beam Angle |
|
TP011-06C025 |
60 |
25 |
AC185-264 |
3000-6500 |
3000 |
>80 |
>0.9 |
IP65 |
270° |
|
TP011-12C036 |
120 |
36 |
AC185-264 |
3000-6500 |
4320 |
>80 |
>0.9 |
IP65 |
270° |
|
TP011-12C045 |
120 |
45 |
AC185-264 |
3000-6500 |
5400 |
>80 |
>0.9 |
IP65 |
270° |
|
TP011-15C060 |
150 |
60 |
AC185-264 |
3000-6500 |
7200 |
>80 |
>0.9 |
IP65 |
270° |
Dimension
|
Model No. |
L1=mm |
W=mm |
H=mm |
|
TP011-06C025 |
600 |
94 |
60 |
|
TP011-12C036/45 |
1200 |
94 |
60 |
|
TP011-15C060 |
1500 |
94 |
60 |
Installation
Package
|
Size |
Rated Power |
Master Carton |
Qty/Carton |
N.W./Carton |
G.W./Carton |
|
600mm |
25W |
750×215x210mm |
6PCS |
6.6KG |
7.76KG |
|
1200mm |
36/45W |
1350x215x210mm |
6PCS |
10.68KG |
12.86KG |
|
1500mm |
60W |
1650x215x210mm |
6PCS |
13.08KG |
21.26KG |
Application
- Cold storage, ice storage, freezer chamber, station, farm;

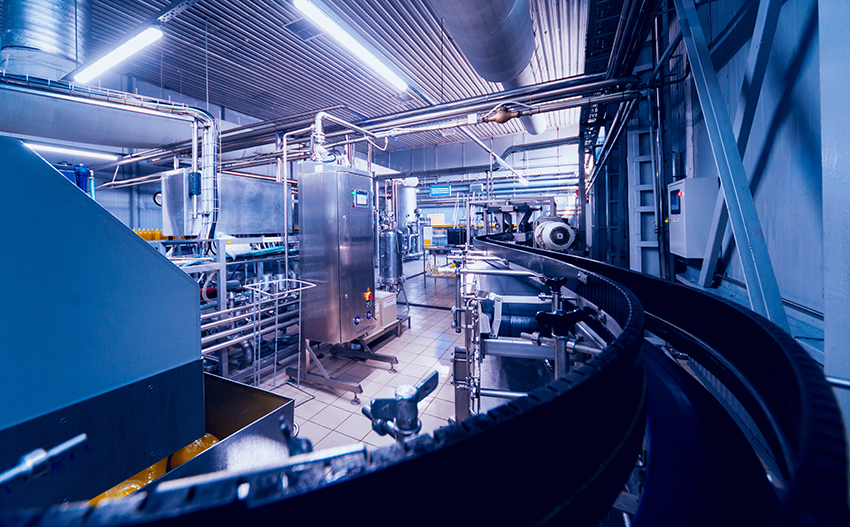

- Food processing factory, restaurant, kitchen, subway;

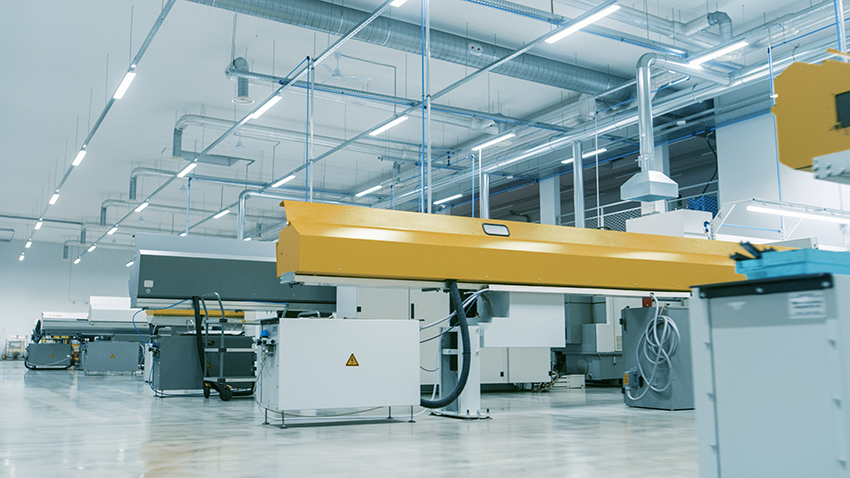

- Factory, supermarket, warehouse, workshop, parking lot;
