IP20 LED Batten Light Fixture For Shop

Product Features

Ideal replacement for fluorescent single and twin batten fittings ;
Detachable housing simplifies installation and maintenance process;
LED batten light can be linked up in series;
Tridonic and OSRAM power supply to provide 50,000 hours long lifetime;
EMC,LVD and RoHS certified.

Product Detail

Product Tags

Features

A direct replacement for traditional twin fluorescents. Mounted on a traditional batten body the LEDs are housed in a slim opal diffuser. Suitable for surface or suspended installation, the fittings are commonly used in schools, offices, corridors and public areas. Available in a choice of three lengths 2ft, 4ft and 5ft the Trinity can be fitted with a combination of optional sensors – Microwave, Emergency & Dimming.

Furthermore, Trinity LED profiles for LED strips are the perfect combination of style, flexibility and cost-effectiveness. It is quick and easy to install and is ideal for new and retrofit applications. By choosing Trinity LED Tri-proof Linear Light Strips, you can enjoy up to 50,000 hours of service life while achieving significant energy savings.

1. Trinity Tri Colour
2. Selectable 3 colour temperatures
3. Direct replacement for fluorescent battens
4. Matt white finish
5. Dimmable options available
6. 5 year warranty

Technical Specification

Model No.	Size (cm)	Power (W)	Input Voltage (V)	CCT (K)	Lumen (lm)	CRI (Ra)	PF	IP Rate	Certificate
BA003-06C020	60	20	AC220-240	3000-6500	2400	>80	>0.9	IP20	EMC,LVD
BA003-12C040	120	40	AC220-240	3000-6500	4800	>80	>0.9	IP20	EMC,LVD
BA003-15C060	150	60	AC220-240	3000-6500	7200	>80	>0.9	IP20	EMC,LVD

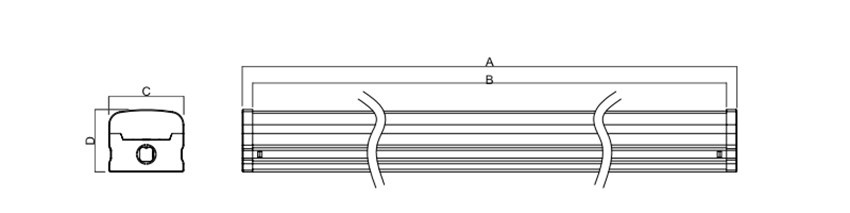

Dimension

Model No.	A(L=mm)	C(W=mm)	D(H=mm)
BA003-06C020	600	85.3	69
BA003-12C040	1200	85.3	69
BA003-15C060	1500	85.3	69

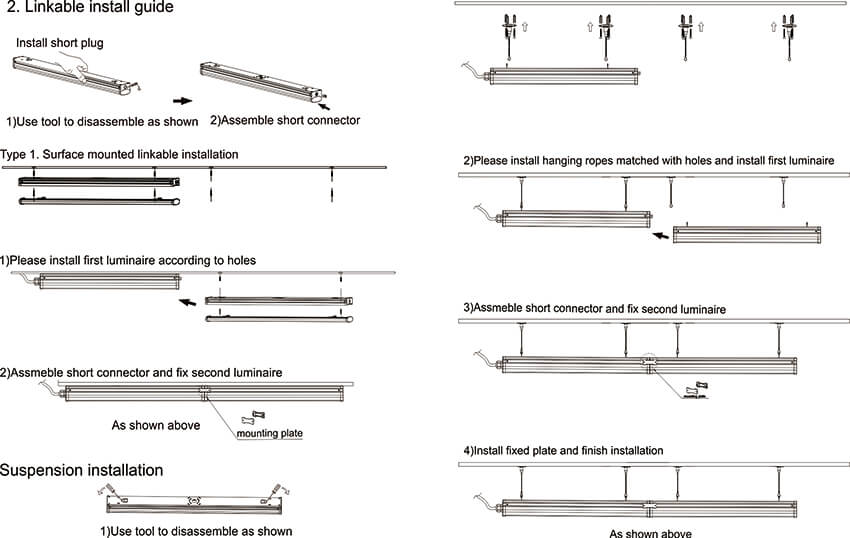

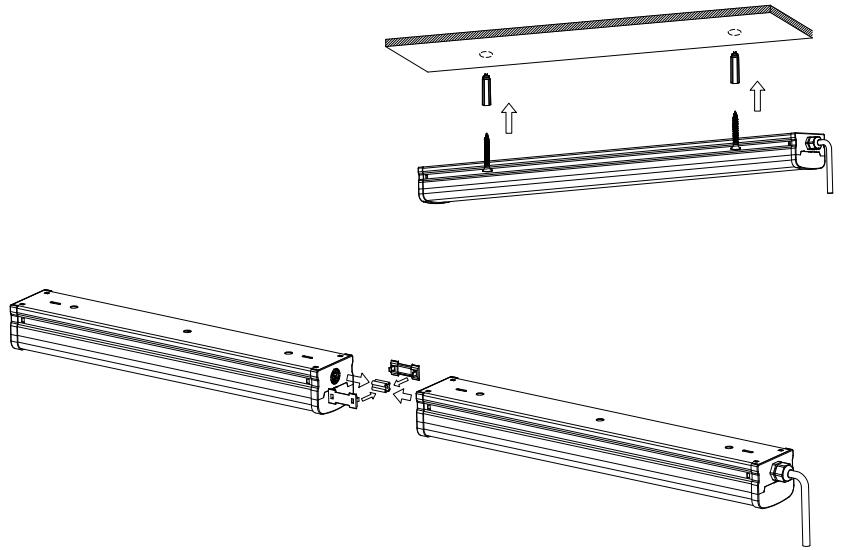

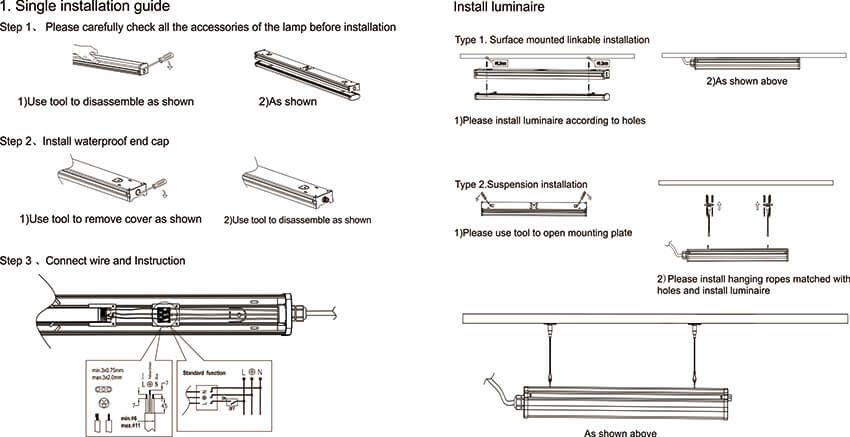

Installation

Wiring

Package

Size	Rated Power	Inner Box	Master Carton	Q`ty/Carton	N.W./Carton	G.W./Carton
600mm	20W	610x90x75mm	625x470x170mm	10PCS	11.5KG	13.8KG
1200mm	40W	1210x90x75mm	1225x380x170mm	8PCS	16.7KG	18.5KG
1500mm	60W	1510x90x75mm	1525x290x170mm	6PCS	15.2KG	17.6KG
