The mounting frame is suitable for LED panels in the size 60x60cm, 62 x 62 cm, 30x120cm, 60x120cm and other all LED panel sizes, which can be easily installed in grosgrain ceilings or wooden ceilings and seamless installation into plasterboard, wood and metal ceilings. For this purpose, you need a ceiling cut-out so that the installation frame runs plan with the ceiling.
Height: 41 mm
Material: powder-coated aluminium;

Colour: white

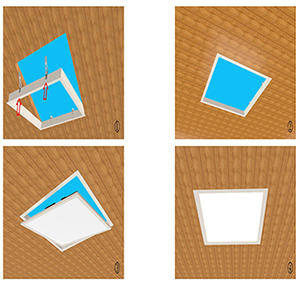

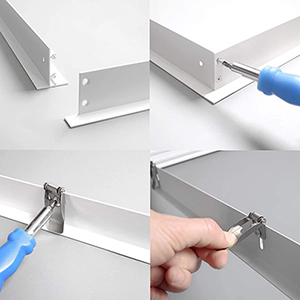

The frame is screwed together on all sides.
Attachment clips are attached to the provided cut-outs.
Insert the mounting frame into the ceiling opening.
Now the recessed light can also be connected and inserted.

Box contents:

The frame delivered by 4 pcs disassembled parts.
Mounting frame disassembled in 4 parts including mounting material.
