70mm Deep No-screw Surface Mounting Kit For LED Backlight Panel

Product Features

Screwless and tool free fast assemble type, save labor cost and time cost. The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation. This surface mounting kit is perfect to install LED backlight panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

Compatible with all LED panel sizes
Easy and safe installation
LED driver can be placed inside
Ideal for plasterboard/concrete ceilings

Color: White

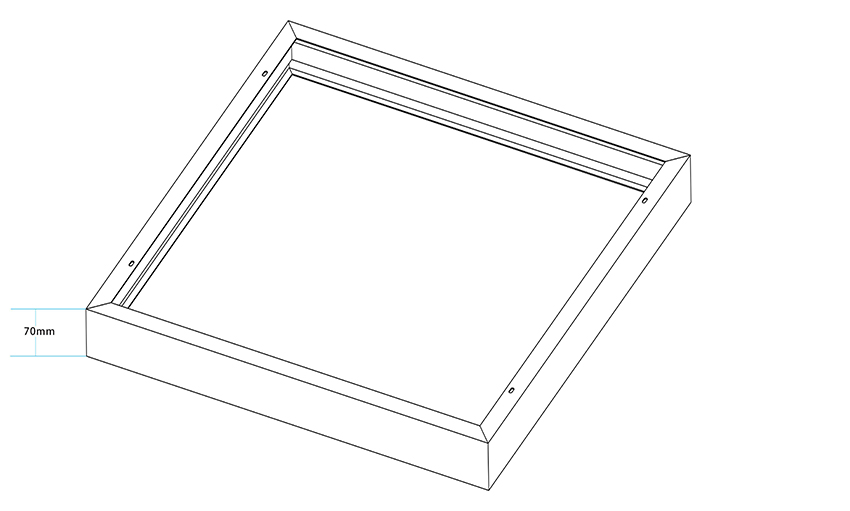

Product height: 70mm

Send email to us Download as PDF

Product Detail

Product Tags

Features

70mm deep surface mounting kit design for LED backlight panel and US standard 2x4, 2x2, 1x4 LED panel and troffers. Individual box packaging and custom-made packaging is acceptable, which can be sold directly on wholesale or retail shelves.

1. Compatible with backlight panel and troffer lights

2. Ideal for plasterboard/concrete ceilings

3. LED driver can be placed inside

4. Easy and safe installation

Dimension

LED Panel Size(mm)	A(mm)	B(mm)	Thickness(mm)
595x595	599	599	70
620x620	624	624	70
295x1195	299	1199	70
595x1195	599	1199	70
295x295	299	299	70
2x2	607	607	70
2x4	607	1216	70
1x4	305	1216	70

Installation

Package

Size	Qty/Carton	Carton Size	N.W./Carton	G.W./Carton
595x595mm	15PCS	635x290x245mm	15KG	16KG
620x620mm	15PCS	660x290x245mm	15.6KG	16.6KG
295x1195mm	12PCS	1235x240x240mm	14.8KG	15.8KG
595x1195mm	12PCS	1235x240x240mm	17.8KG	18.8KG
2x4	12PCS	1250x240x240mm	18.1KG	19.1KG
2x2	15PCS	645x290x245mm	15.3KG	16.3KG
1x4	12PCS	1250x240x240mm	15KG	16KG
