60×60 120×30 Surface Mounting Kit For LED Panel Light

Product Features

Our extrusion 6063-T5 aluminum alloy surface mounted frames which fix directly to the ceiling, the LED panel is then easily slid into position, and the final side of the panel is fixed to the frame, giving a complete surface mounted fitting. The surface mounting kit is compatible with all LED panel sizes, easy and safe installation, LED driver can be placed inside, best ideal for plasterboard/concrete ceilings.
Color: White or Sliver or customized color
Height: 50mm
Thickness: 1.3mm & 1.5mm
Suitable panel thickness: 8mm-12mm

Send email to us Download as PDF

Product Detail

Product Tags

Features

This surface mount frame is perfect to install edgelit LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings, where recessed mounting is not possible.

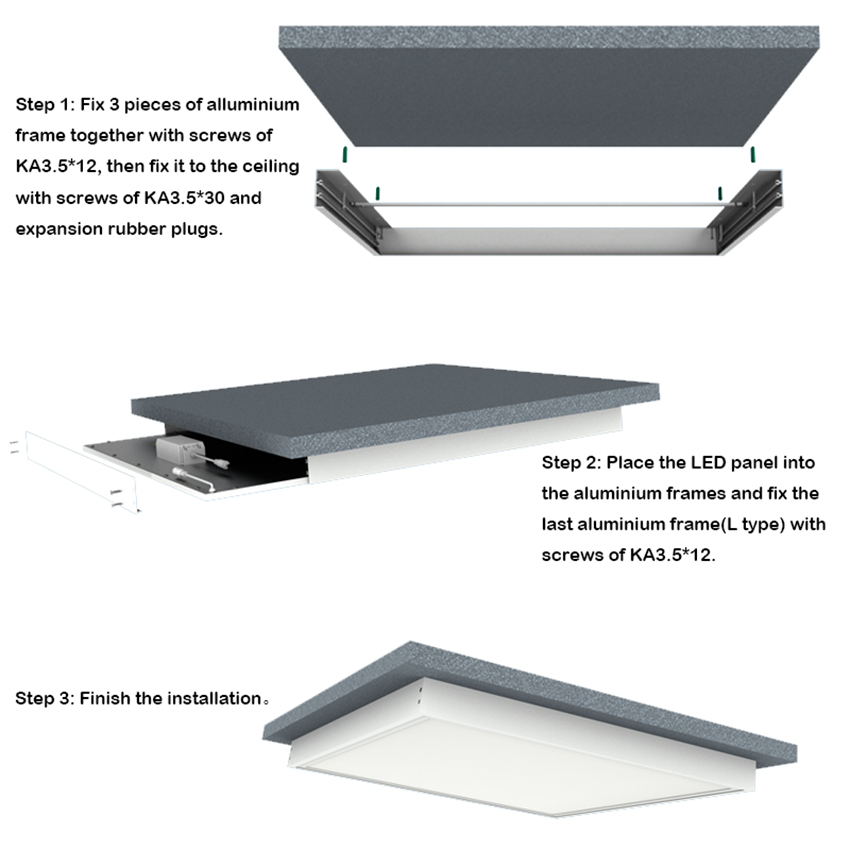

Firstly, fixing three frames with screws and mounting to the ceiling. Then LED panel is slid in. At last, complete the installation by screwing the remaining frame.

1. Well made, no slot after assembling.
2. Screws are processed powder-coated as same white color as frame.
3. The screw was sunk into the frame, keep screw head and frame at a same height.

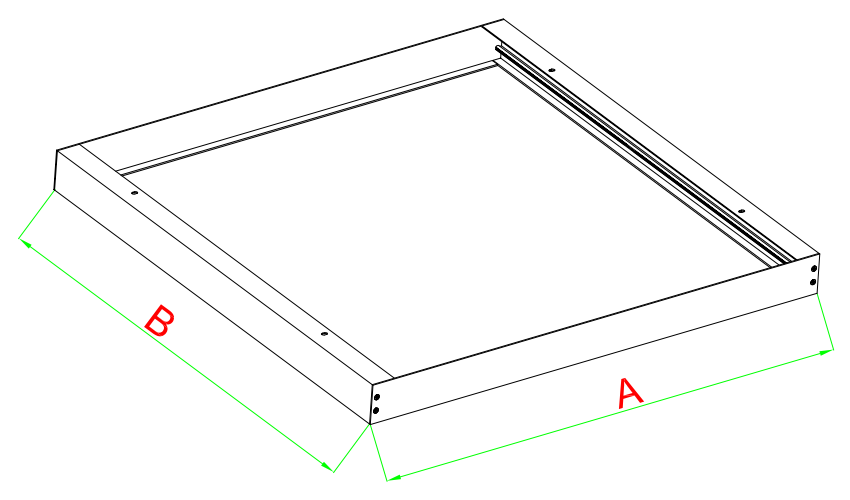

Dimension

LED Panel Size(mm)	A(mm)	B(mm)	Thickness(mm)
595x595	599	599	50
620x620	624	624	50
295x1195	299	1199	50
595x1195	599	1199	50
295x295	299	299	50
2x2	607	607	50
2x4	607	1216	50
1x4	305	1216	50

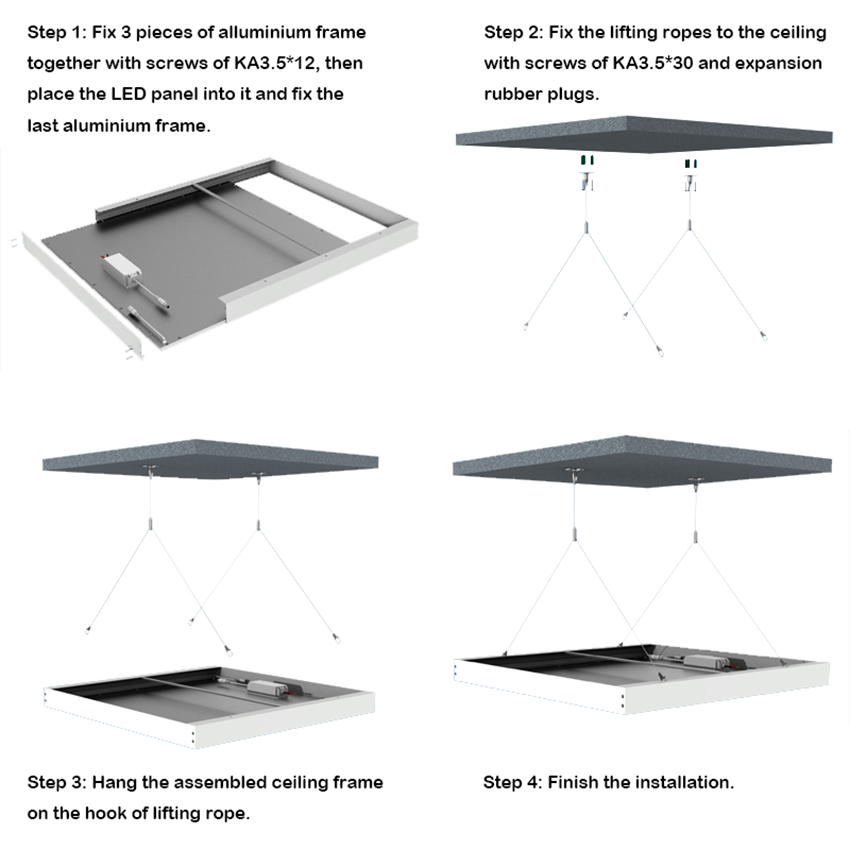

Installation

Package

Size	Qty/Carton	Carton Size	N.W./Carton	G.W./Carton
595x595mm	20PCS	620x195x235mm	16.9KG	17.4KG
620x620mm	20PCS	640x195x235mm	17.3KG	17.8KG
295x1195mm	15PCS	1220x195x180mm	17.7KG	18.7KG
595x1195mm	15PCS	1220x195x180mm	19KG	20KG
2x4	15PCS	1240x195x180mm	20.3KG	21.3KG
2x2	20PCS	620x195x235mm	17.1KG	17.6KG
1x4	15PCS	1240x195x180mm	19.1KG	20.1KG
