Top Grade Aluminum Panel Frame for 60X60 LED Panel Light, LED Panel Light Kit Aluminum Frame, Aluminum Frame For LED Panel

Product Features

Fast and convenient assembly type, without any screws and tools design. Plug-in surface mounting frame 60x60cm 62x62cm and 30x120cm white for mounting the LED panel.

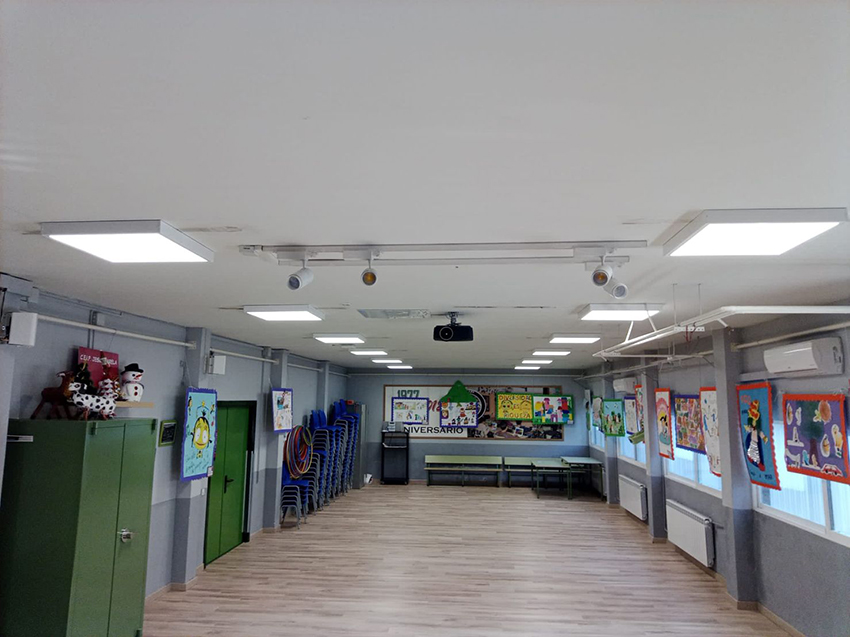

Surface mounting frame made of high quality 6063 aviation aluminum. This surface mounting frame picks up your LED panel precisely, together with the power supply on the back, you achieve with this frame a special look when you mount your LED panel on the ceiling or wall, or in any other possible mounting position.

With a few simple steps, you mount the frame completely, then attach the frame in the designated place. Finally, push in the panel and make contact with the power supply, and you’re done!
Color: White or Silver
Height: 51mm
Thickness: 1.0mm
Max panel thickness: 15mm

Send email to us Download as PDF

Product Detail

Product Tags

Our commission should be to serve our end users and purchasers with finest top quality and competitive portable digital products and solutions for Top Grade Aluminum Panel Frame for 60X60 LED Panel Light, LED Panel Light Kit Aluminum Frame, Aluminum Frame For LED Panel, We have been searching forwards to creating long-term business interactions with worldwide customers.
Our commission should be to serve our end users and purchasers with finest top quality and competitive portable digital products and solutions for Aluminum Frame For LED Panel and led panel mounting frame, We hope we can establish long-term cooperation with all of the customers. And hope we can improve competitiveness and achieve the win-win situation together with the customers. We sincerely welcome the customers from all over the world to contact us for anything you need!
eatures

Plug-in Surface mounting frame for mounting the LED panel, easy and convenient for surface mounting installations for LED panels in locations where recessed mounting is not possible. The screwless surface mount frame is designed to solve the hard to be assembled problem that the old type surface mount frames have. It is very easy to install, save 80% labor cost.

1. Compatible with all LED panel sizes
2. Easy and safe installation
3. LED driver can be placed inside
4. Ideal for plasterboard/concrete ceilings
5. Silver or white color aluminum finish

Dimension

LED Panel Size(mm)	A(mm)	B(mm)	Thickness(mm)
595×595	599	599	51
620×620	624	624	51
295×1195	299	1199	51
595×1195	599	1199	51
295×295	299	299	51
2×2	607	607	51
2×4	607	1216	51
1×4	305	1216	51

Installation

Package

Size	Qty/Carton	Carton Size	N.W./Carton	G.W./Carton
595x595mm	20PCS	635x230x290mm	18.5KG	19KG
620x620mm	20PCS	660x230x290mm	19.3KG	19.8KG
295x1195mm	12PCS	1235x185x190mm	13.3KG	14.3KG
595x1195mm	12PCS	1235x185x190mm	15.8KG	16.8KG
2×4	12PCS	1250x185x190mm	20.3KG	21.3KG
2×2	20PCS	635x230x290mm	16.2KG	17.2KG
1×4	12PCS	1250x185x190mm	13.8KG	14.8KG
